2. Fire resistance rolling shutter door also have function of fireproof
3. High efficiency, energy saving, can be used continuously
4. Roll shutter door forming machine use PLC and inverter controller
5. The straightening device of this roller shutter door roll forming machine can be adjusted to decrease phenomenon caused in the process of roll forming.
Technical parameters:
Processing material: colored steel plate, galvanized plate, or aluminium plate
Material thickness : 0.3---0.8mm
Material width : 100 - 160 mm(according to the profile)
Diameter of shaft : 75 mm
Roller Station : 10 - 15 steps
Sidewall Thickness : 14 mm
Main frame :400 H steel
Motor Power : 4 + 3 kw
Forming speed : 10 - 20m/min
Forming rollers
Specification: 45# steel, CNC Lathes, heat treated Feature: hard chrome plating, 0.05 mm
Hydraulic cutting system
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.

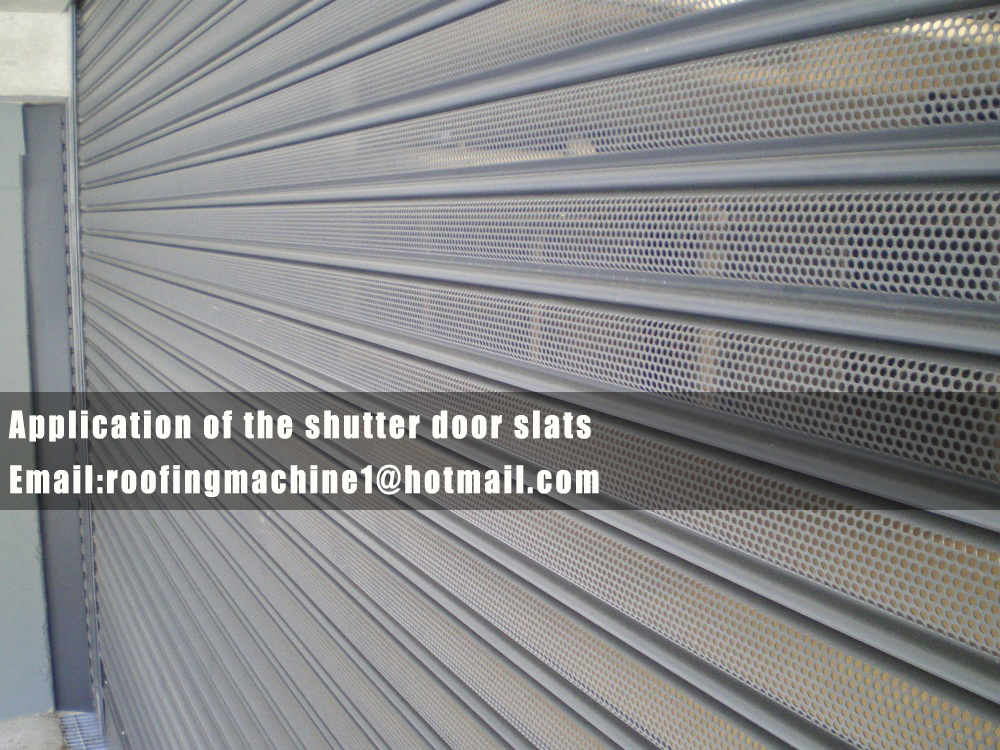

The products produced by hydraulic cutting shutter door machine are bright in colored, against fading, resistant to rust, and be widely used in shops, working departments, warehouses, and fire partition. Its strength is three times higher than aluminum alloy door.
Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 ton, and it is capable for most of the coils .
Feeding
Receiving the raw material , it guarantees the products are neat, parallel and everything is uniformit.
Electrical control cabinet
PLC is adopted to organize all action of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes : Automatic and manual. By automatic mode , the machine can realize fully automatic working .
Hydraulic system
It is drived by a gear pump. After filling the hydraulic oil into the hydraulic oil tank , the pump could drive the hydraulic cylinder to realize the cutting function .
The system includes a set of hydraulic tank , a set of a gear pump , two hydraulic pipes and two sets of solenoid valves .Hydraulic oil : 40#
A. For this machine need 1*40 GP container to load, one container can load 2 sets machines normally.
B.
Make some protection on the machine. We will make the plastic package
on the easy damage parts, paint the oil on the roller and shaft .
C. we will fix all the parts into container by steel wire rope. And ensure the machine will not damage when shaking on sea.
D.
we will take phoots and videos for customer when loading to container,
so that the customer can take out the machine easily when receive the
goods
